Foundations

Typography

Typography is a deliberate system of letters, numbers, and characters. Good typography ensures legibility, clean aesthetics, and a well-defined information hierarchy.

Typefaces

Typefaces included in the Keystone Design System

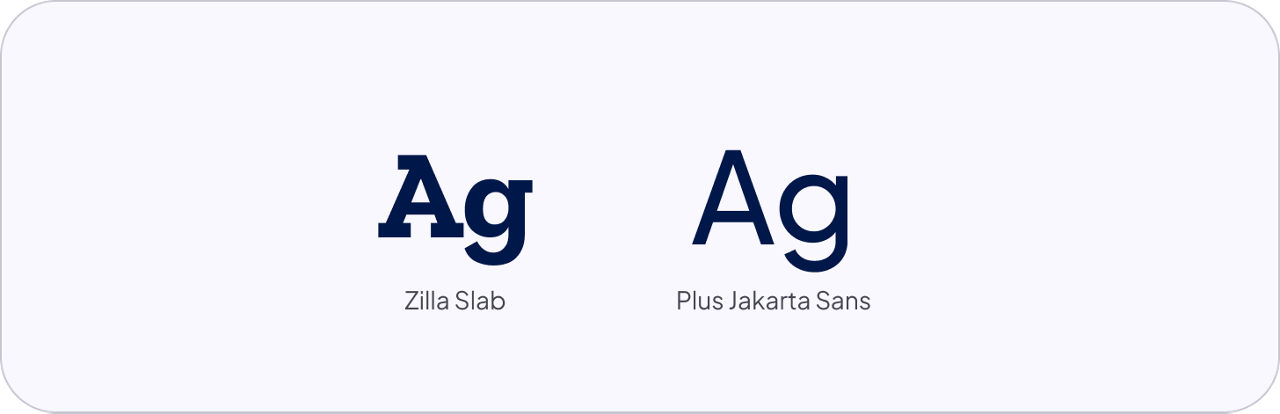

Keystone uses the typefaces Zilla Slab and Plus Jakarta Sans. These are available for download below.

Font Packages

Download the Zilla Slab and Plus Jakarta Sans font families

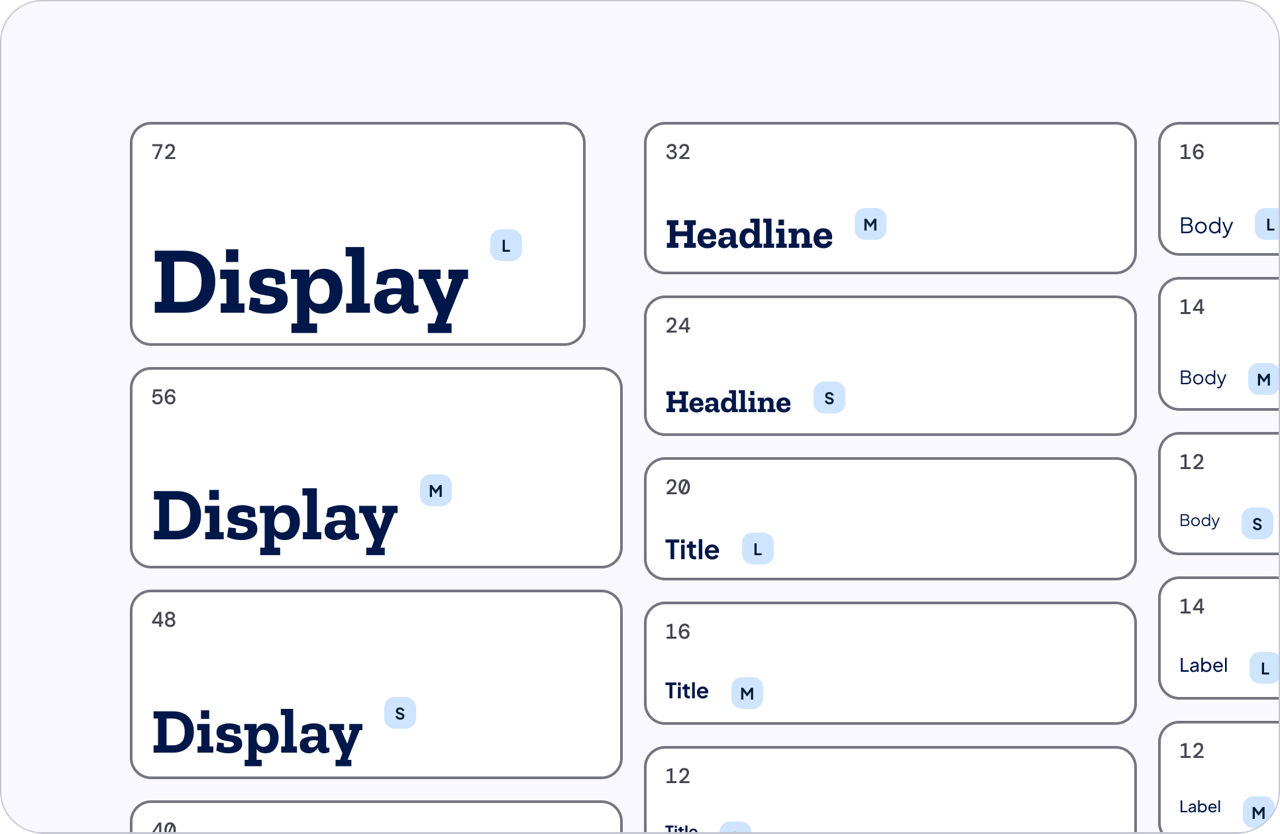

Type Scale

type scale is a selection of font styles that can be used across a digital experience, ensuring a flexible, yet consistent, style that accommodates a range of purposes. The Keystone type scale is a combination of 15 styles, each with an intended application and meaning. They’re assigned based on use (such as display or headline), and grouped more broadly into categories based on scale (such as large or small).



Keystone’s default type scale uses Zilla Slab for all Display and Headline styles and Plus Jakarta Sans for all titles, labels, and body text, creating a cohesive typography experience.

The scale is a range of contrasting styles that support the needs of various product contexts and content.

Responsive Font Ramp

For XS (extra small) to S (small) breakpoints smaller than 992 pixels, use the responsive display and header variants. Remember that styles do not correspond to a specific HTML tag. An H1 tag can be assigned to any header style and size, as long as a logical hierarchy is maintained throughout the page and throughout your application.

Style

Desktop Size

Responsive Size

Line Height

Typeface

Display Large

72px

48px

105%

Zilla Slab

Display Medium

56px

40px

105%

Zilla Slab

Display Small

48px

32px

105%

Zilla Slab

Headline Large

40px

24px

120%

Zilla Slab

Headline Medium

32px

20px

120%

Zilla Slab

Headline Small

24px

16px

120%

Zilla Slab

Title Large

20px

120%

Plus Jakarta Sans

Title Medium

16px

120%

Plus Jakarta Sans

Title Small

12px

120%

Plus Jakarta Sans

Body Large

16px

150%

Plus Jakarta Sans

Body Medium

14px

150%

Plus Jakarta Sans

Body Small

12px

150%

Plus Jakarta Sans

Label Large

14px

125%

Plus Jakarta Sans

Label Medium

12px

125%

Plus Jakarta Sans

Label Small

11px

125%

Plus Jakarta Sans



Applying Type

Hierarchy is communicated through differences in font weight, size, line height, and letter spacing. The updated type scale organizes styles into five roles that are named to describe their purposes: Display, headline, title, label, body. The new roles are device-agnostic, allowing easier application across a variety of use cases.

Roles

Display

There are three display styles in the default type scale: Large, medium, and small. As the largest text on the screen, display styles are reserved for short, important text or numerals. They work best on large screens.

Headine

Headlines are best-suited for short, high-emphasis text on smaller screens. These styles can be good for marking primary passages of text or important regions of content.

Display

There are three display styles in the default type scale: Large, medium, and small. As the largest text on the screen, display styles are reserved for short, important text or numerals. They work best on large screens.

Body

Body styles are used for longer passages of text.

Label

Label styles are smaller, utilitarian styles, used for things like the text inside components or for very small text in the content body, such as captions.

Buttons, for example, use the label large style.

Ensuring Readability

Type Pairing

Typography can help create clear hierarchies, organize information, and guide users through a product or experience. Together with spacing, type pairings support different levels of architecture or areas that require varying typographic hierarchies.

All type roles are divided into 3 size groups: large, medium, and small. When pairing type styles for general page content, aim to pair styles from the same size group. For example, if you use Headline.Large for a heading, you should pair it with Body.Large for your body text. The one exception to this pattern is the pre-title, which should always use title.small.uppercase, regardless of accompanying typestyles.

Line Length

Line length is how many characters are on a single line of text.

For longer body text, the recommended line length is between 40 to 75 characters. To ensure proper line length for body text, refer to the recommended max-width values in the table below.

Style

Recommended Max-Width

Body Large

510px

Body Medium

486px

Body Small

384px

Accessibility

Color & Contrast

Support visual accessibility by choosing the appropriate color contrast between your product’s text and background. Contrast is the perceived difference between the lightness or darkness of two colors, and is quantified by a contrast ratio. Key contrast ratios indicate levels of contrast that are sufficient for accessibility.



Large Text

Large text (18px or larger, or 14px or larger if bold) should meet a contrast ratio of 3:1 for standard accessibility (graded as AA) and 4.5:1 for greater accessibility (graded as AAA).



Standard Text Sizes

Standard body text sizes (smaller than 18px, or smaller than 14px if bold) should meet a contrast ratio of 4.5:1 for standard accessibility (graded as AA) and 7:1 for greater accessibility (graded as AAA).



Default Text Color

The default color for typography is on-surface, although on-surface-variant is a strong alternative.
